Using Geo-spacial video to identify points of interest

Introduction

Using the software LineVision- Ultimate we tracked the latitude and longitude for certain points of interest along with the flight of a controlled burn. Using this software and assuming that the GPS was calibrated correctly, one can click on the video and see the exact latitude (lat.) and longitude (long.).

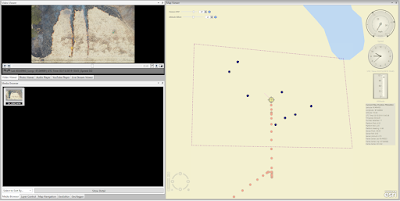

Figure 1, A screenshot of the LineVision software

Method

Going through and marking the points of interest along with the video so that the lat. and long. could be recorded. Recording them, they were placed into a table on Word to easily view the values quickly. The 4 items to track were some green trees, a Gator (similar to an ATV), an ATV and a blue truck. Also, there were two fire lines which the start and endpoint of each were plotted.

Figure 2, Table showing the points of interest and their respective Lat. / Long.

Discussion

In the example (Figure 1), the GPS information for the flight was corrupted and the GPS information was inaccurate, but the software still worked well enough to provide geotags for the locations. As this was more of a trial run to learn how to properly use the software the small issues were overlooked. Knowing this the data would have to be rerecorded and another flight would have been needed.

Conclusion

Due to the GPS error that was discovered with the data for this flight this data wouldn't be able to be used to conduct research and a new flight would be needed to rerecord the data. As this was used just to get used to the software it more showed how sensitive the software is to small errors and what those small errors can do to the data in this sensitive program

Taking Photos in Different Lighting Locations using a Mavic 2 Pro

Introduction

For this lab, the goal was to place the drone into different settings in order to experience different lighting scenarios to practice changing the camera settings to get a clear image. This was done through taking them manually, aperture priority and shutter priority. The auto setting was also used to give an "example" photo for us to try and match, although, like in the case of the hanger, the auto could overexpose an image so we were careful to not just put back in the same values that the auto set.

The first object was a large object in the hanger. Here the auto settings overexposed the image slightly so it was important to switch to manual mode to take out some of the brightness due to the large lights in the hanger.

The second object was outside, providing a different lighting situation that also needs its settings changed.

The third object was a small object in low light, which in order to achieve a low light the photo was taken under a table. Due to the extremely low light getting a photo with manual settings was difficult and a screenshot was forgotten, although the auto settings worked very well in the dark area under the table.

The fourth was an object of choice. The object we chose was a clock in an average lit room.

Changing the Camera Settings on a DJI Mavic 2 Pro

Setting up the Mavic 2 Pro

Starting this process both the controller and the drone must be on and connected to control the camera settings. This is simply done by tapping then holding the power button to turn on the controller. Next, connect a device with DJI GO 4.0 to gain the camera's view and settings. Next, on the Right side there above the orange circle there is a camera flip option to switch from video to pictures. This will give you the correct settings for the camera.

What do the camera settings do?

Before going too much farther into the camera settings it would be best to discuss what each setting does and how they interact with one another. First is ISO which is how sensitive the camera's sensor is to light. This is done on a digital camera by increasing/decreasing the voltage to the sensor.

The second setting that should be highlighted is the aperture. This is how wide the lens is opening for the image. This controls the depth of field and also can affect the brightness of the image by not letting in enough light for the sensor to capture the image properly.

The third setting is the shutter speed. Most modern cameras use a rolling shutter, this is in reference to how the sensor captures the image. In a rolling shutter, the sensor "activates" one row of the image capturing pixels at a time and slowly scrolls down to capture the image. The shutter speed is in reference to how fast the scrolling feature is going in seconds

All of these settings can be changed to get an image like figure 1 below, it just means changing the relative ISO, aperture and shutter speed to get that. If you wanted a shutter speed that was super fast, you would need more light to be let into the camera, thus you would increase the aperture, what also would help is making the sensor more sensitive to light by increasing the ISO.

Methods

First to get a control image using auto settings, which generated this image.

Figure 1

In figure one, you have even lighting, where there is not too much or too little light reaching the sensor. This is seen as the red looks like reading and not washed out or too dark. The reflections are not too overpowering either.

Figure 2

The first setting that was changed was ISO,  This was taken at the lowest settings for ISO, and kept the aperture and shutter speed where the auto had placed it, this was 2.8 and 1/50 respectively. This can be seen in figure 2.

Figure 3

Second, the ISO was changed to a more middle setting. As seen in Figure 3 the value was set to 800. This brightened the image and cause the white to become quite reflective and overpowering.

Figure 4

This figure 4 was included to further emphasize what increasing the ISO would do to the image, as it was already implied to be making the image too bright. This image is completely washed out and makes it very hard to see the helicopter.

Figure 5

Referencing figure 2 as a starting point the next setting that was adjusted was the aperture. The ISO was reset to 100 as seen in figure 2. The aperture was increased and as it was increased it started letting less light into the image. Figure 5 was taken at max aperture, which for a DJI Mavic 2 is 11. This let in so little light that it's almost a black image. The only thing that can barely be seen is a reflection of the cockpit glass in the top left corner.

Figure 7

Figure 6

Figure 8

Figures 6-8 were when shutter speed was changed Starting at the lowest value, 1/8000 and leaving the ISO and aperture the same as in figure 2, figure 6 is very dark. The light in the hanger wasn't sufficient to lighten the image without changing other settings. Figure 7 is a little more middle ground but is brighter than figure 2. as figure 2 had a shutter speed of 1/50 and figure 7 has a shutter speed of 1/6.25. The final figure, figure 8 has a shutter speed of 1.3 which brightened the image even more than figure 7.

Conclusion

All of these settings can be changed to produce an image like figure 1 and just because the auto settings say to have shutter speed, ISO and aperture at a specific number doesn't mean that's the only settings that can produce an image that will be balanced. These 3 settings can be used to develop an image in the way that is desired.
